looper pedal board Double Pedal Audition Box (With Auto Reroute) for your Pedal Board With Isolated Jacks

looper pedal board Double Pedal Audition Box (With Auto Reroute) for your Pedal Board With Isolated JacksWith this 4 Way Patch bay you'll have the ability to auto switch 2 loops when you disconnect the cables. This can be used in several ways. For example, you can use these to "audition" pedals in your chain. Simply connect your pedals inputs to the IN jack of the box, and the output to the OUTPUT of the box, and youll will have inserted your pedal into your chain without changing cables. Its like a true bypass loop but without the switch. Then once you

With this 4 Way Patch bay you'll have the ability to auto switch 2 loops when you disconnect the cables.

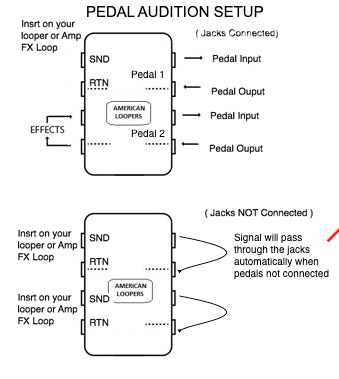

This can be used in several ways. For example, you can use these to "audition" pedals in your chain. Simply connect your pedal’s inputs to the IN jack of the box, and the output to the OUTPUT of the box, and you’ll will have inserted your pedal into your chain without changing cables. It’s like a true bypass loop but without the switch. Then once you are done, simple pull those cable and the box will automatically re-route the jacks to bypass mode.

Another configuration is if your Looper has an insert, you can put pedals in and out of the insert, without having to re-route your pedalboard or make new cables.

You can also use this box as a normal 4 Way box, so you'll have the flexibility of both options in one box.

Please, if you have any questions about the functionality of this box, please do send us an message.

Features:

- Genuine Isolated Neutrik Jacks Throughout (Except on jacks, necessary for the auto rerouting, these are still Neutrik)

- Saves your effect's jacks from wearing out

- Will not affect your tone

- Extra Tough Powder Coating Paint

Components:
- Military Spec Wiring
- Nickel Plated jacks
- Diecast Aluminum Enclosure


Measures:
4.51 X 2.52 x 1.02 (inch)
115 x 64 x 26 (mm)

1 year warranty!

We ship worldwide!
